LoRa Air Quality Button
The purpose of installing LoRa based Air Quality Button on the premise is to:
- Monitor Air Quality (Temperature and Humidity)
- Notify Responders
- Inbuilt button to call for action, assistance or emergency
- Direct Alert for crossed thresholds on the Device (Buzzer and LED)
- Communicate Alerts when thresholds are exceeded
- Trend Indication and Data Analysis
Key Features
- No Wires, No Charging, No SIM
- Over 5 Years Battery Life (2 x AA-Alkaline Battery)
- Traffic Light indicator for local temperature / humidity alerts
- LoRa message on Button Press
- Configurable measurement sending interval
- Regular Heartbeat with Battery Status
- Plug & Play with easy integration using Javascript decoder
- Fully-Encrypted Data Transmission
Specifications
- Model No: MTC-AQB01, 02, 03, 04
- Enclosure Size: 95 x 95 x 40 mm
- Net Weight: 184g
- Ingress Protection: IP30 / IP44
- Operating Temperature: -18°C to + 55°C
- Voltage: 3V (2 x AA-Alkaline Battery)
- Battery Life: 5 Years
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm
- Sensor Reading Ranges:
- Temperature: -40 to +125°C
- Humidity: 0-100% RH
- Sensor Accuracy:
- Temperature: ±0.2°C
- Humidity: ±1.8% RH
Available in
- Red Lens, IP30 (MTC-AQB01, RED and YELLOW LED, not protected against liquids)
- White Lens, IP30 (MTC-AQB02, RED, YELLOW and GREEN LED, not protected against liquids)
- Red Lens, IP44 (MTC-AQB03, RED and YELLOW LED, protected against spray water)
- White Lens, IP44 (MTC-AQB04, RED, YELLOW and GREEN LED, protected against spray water)
Downloads

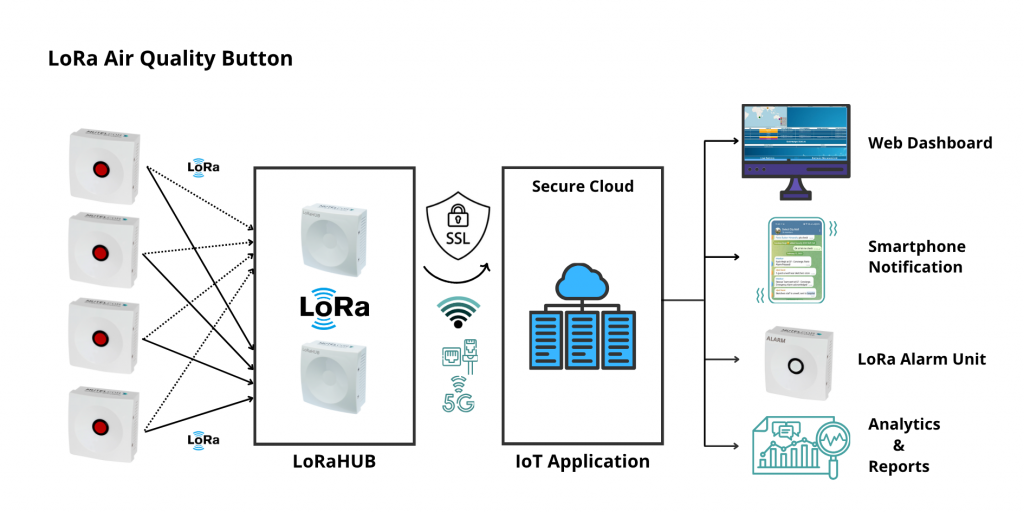

How it Works?
Dashboard, Alerts & Reports
Dashboard comprises of the following segments:
- Customizable Layout: Dashboard can be customized on customer request
- Real-time Update: Values are updated immediately on dashboard
- Time-intervals: Freedom to view measurement history on custom and predefined time intervals
Application Areas
- Industrial Sector
- Police, Ambulance and Fire alarm system
- Residential Security and Safety
- Emergency Solution in Hospitals
- Wireless Nurse Call System in Hospitals
- Museums
- Home Automation
- Ragging and Brawl safety solution
- Theft, Shoplifting and Violence
- SPA, Sauna, GYM, Swimming and Front-Office
- University Campus
FAQ
Temperature Range: -40°C to +125°C
Humidity: 0-100% RH
The device needs a LoRa Gateway and LoRaWAN network. The number of required
gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
A device can run for more than 5 years without the batteries being replaced.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the
Wireless Planning Commission, Govt of India.
For more details about our products and expert advice to chose the right product for your use case, please contact us at: business@mutelcor.com
