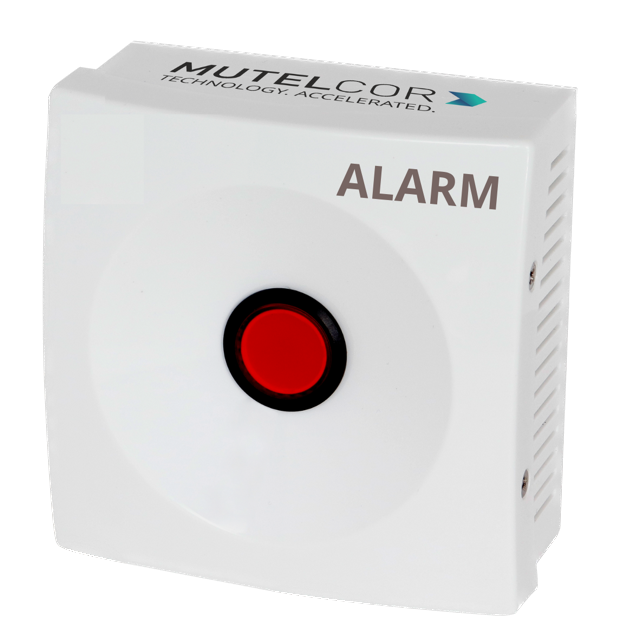

LoRa Alarm Unit

When the Alarm Unit is triggered by a LoRa downlink message, it performs the following functions:

  • Configurable Alarm is started (LED and Buzzer behaviour can be configured)
  • The LED Button can be pressed to stop the Alarm locally on the Device
  • When the Alarm is stopped, a LoRa uplink message is sent

Key Features

  • Device configurable with OTA Commands over LoRa
  • Multi-color LEDs (RED/YELLOW/GREEN) to indicate Alerts
  • Buzzer Siren on Alerts received
  • LED Button to manually stop the Alarm
  • Regular Heartbeat via LoRa to indicate Connectivity Status
  • Class A Device with Secure Data Transmission
  • Plug & Play with easy integration using Javascript decoder

Specifications

  • Model No: MTC-AU01 / MTC-AU02 / MTC-AU03 / MTC-AU04
  • Enclosure Size: 95 x 95 x 55 mm
  • Net Weight: 150g
  • Ingress Protection: IP30 / IP67
  • Operating Temperature: -18°C to + 55°C
  • Voltage: 100 - 240V AC / 3.3V DC, 1A (MTC-AU01, MTC-AU03) or 3V (2 x AA-Lithium Battery) (MTC-AU02, MTC-AU04)
  • LoRa Frequency:
    • EU863-870 (CE-Certified)
    • IN865-867 (ETA-Certified)
    • US902-928
    • AU915-928
    • AS923-1, -2, -3, -4
    • KR920-923
  • OTAA and ADR: Compliant
  • SF Supported: 7 – 12
  • RF Output: 14 dBm

Available in

  • Red Lens, IP30 (MTC-AU01, RED and YELLOW LED, Power Run, not protected against liquids)
  • Red Lens, IP67 (MTC-AU02, RED and YELLOW LED, Battery Run, waterproof)
  • White Lens, IP30 (MTC-AU03, RED, YELLOW and GREEN LED, Power Run, not protected against liquids)
  • White Lens, IP67 (MTC-AU04, RED, YELLOW and GREEN LED, Battery Run, waterproof)

Downloads

DATASHEET

Usage and Integration

LoRa Alarm Unit can be used either independently or with our other products like LoRa Panic Button with Confirmation, Smart CO2 LoRa Sensor or LoRa Air Quality Sensor to siren Alarms and Alerts.

  • Up to 4 different Alarm-Types can be configured on the device
  • Changeable LED Color based on Alarm-Type
  • Configurable Behavior (LED: ON, OFF, Flash / Buzzer: ON, OFF, Beep)

Application Areas

  • Industrial Sector
  • Police, Ambulance and Fire alarm system
  • Residential Security and Safety
  • Emergency Solution in Hospitals
  • Wireless Nurse Call System in Hospitals
  • Museums
  • Home Automation
  • Ragging and Brawl safety solution
  • Theft, Shoplifting and Violence
  • SPA, Sauna, GYM, Swimming and Front-Office
  • University Campus

FAQ

The device needs a LoRa Gateway and LoRaWAN network. The number of required gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
The device runs on power and optionally on battery.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the Wireless Planning Commission, Govt of India.
For more details about our products and expert advice to chose the right product for your use case, please contact us at: business@mutelcor.com
