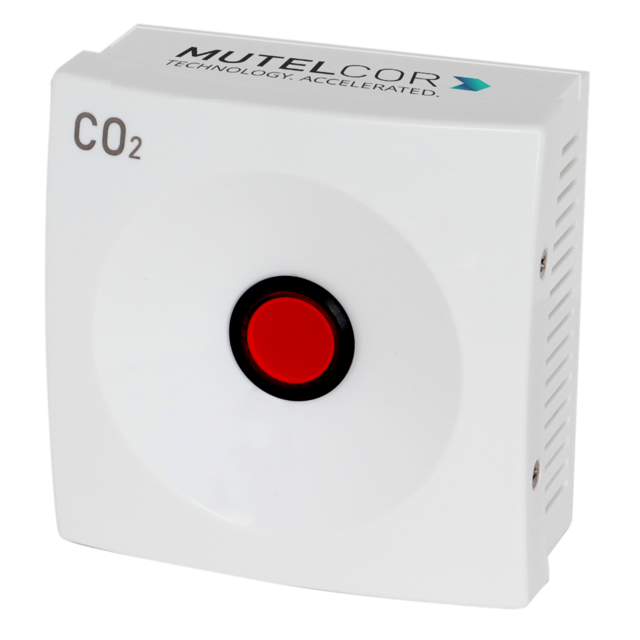

Smart CO2 LoRa Sensor

  • Smart CO2 LoRa Sensor is a unique power-driven Air Quality sensor
  • Measures CO2, Temperature and Humidity every 2 seconds
  • Robust dual-channel NDIR sensor
  • Automatic Traffic Light Feature
  • Local and LoRa-based Alarms based on multi-color LEDs and Sound
  • Plug & Play handling with multiple Threshold settings

Key Features

  • Automatic LED Alerts on threshold limits
  • Option to delay LED changes with a timeout to prevent misuse
  • Real-time sensor measurement
  • Configurable measurement sending interval
  • Secure Data Transmission
  • Plug & Play with easy integration using Javascript decoder

Specifications

  • Model No: MTC-CO2-01 / MTC-CO2-02 / MTC-CO2-03 / MTC-CO2-04
  • Enclosure Size: 95 x 95 x 48 mm
  • Net Weight: 150g
  • Ingress Protection: IP30 / IP44
  • Operating Temperature: -18°C to + 55°C
  • RF Output: 14 dBm
  • Voltage: 100 – 240V AC / 3.3V DC, 1A
  • LoRa Frequency:
    • EU863-870 (CE-Certified)
    • IN865-867 (ETA-Certified)
    • US902-928
    • AU915-928
    • AS923-1, -2, -3, -4
    • KR920-923
  • OTAA and ADR: Compliant
  • Sensor Reading Ranges:
    • CO2: 0-40.000 ppm
    • Temperature: 0 - 70°C
    • Humidity: 0-100% RH
  • Sensor Accuracy:
    • CO2: ± 30ppm ±3%
      (for 400-10.000 ppm)
    • Temperature: ± 0.5°C
    • Humidity: ±3% RH

Available in

  • Red Lens, IP30 (MTC-CO2-01, RED and YELLOW LED, not protected against liquids)
  • White Lens, IP30 (MTC-CO2-02, RED, YELLOW and GREEN LED, not protected against liquids)
  • Red Lens, IP44 (MTC-CO2-03, RED and YELLOW LED, protected against spray water)
  • White Lens, IP44 (MTC-CO2-04, RED, YELLOW and GREEN LED, protected against spray water)

Downloads

DATASHEET
FLYER
QUICK GUIDE

Dashboard, Alerts & Reports

Dashboard comprises of the following segments:
  • Customizable Layout: Dashboard can be customized on customer request
  • Real-time Update: Values are updated immediately on dashboard
  • Time-intervals: Freedom to view measurement history on custom and predefined time intervals
  • Auto Generated Reports: Reports can be generated automatically and sent to the end user via email

Application Areas

  • School Classrooms
  • Offices and Conference Rooms
  • Hospitals
  • Villas/Apartments
  • Shopping Malls
  • Courtrooms, Banks and Hotels
  • Cinemas
  • Museums

FAQ

CO2: 0-40.000 ppm
Temperature: 0-70°C
Humidity: 0-100% Rh

The sensor comes fully calibrated. Manual calibration of the sensor can be easily done in real-time over the LoRaWAN Network.

Over 1000 devices in parallel can be easily connected with a single gateway.

The device runs on power only. A Power Adapter is provided together with the sensor.

The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the Wireless Planning Commission, Govt of India.

For more details about our products and expert advice to chose the right product for your use case, please contact us at: business@mutelcor.com
