LoRa Air Quality Sensor
The purpose of installing LoRa based Air Quality Sensor on the premise is to:
- Monitor Air Quality (Temperature and Humidity)
- Notify Responders
- Communicate Alerts when thresholds are exceeded
- Trend Indication and Data Analysis
Key Features
- No Wires, No Charging, No SIM
- Over 5 Years Battery Life (2 x AA-Alkaline Battery)
- Configurable measurement sending interval
- Regular Heartbeat with Battery Status
- Fully-Encrypted Data Transmission
- Plug & Play with easy integration using Javascript decoder
Specifications

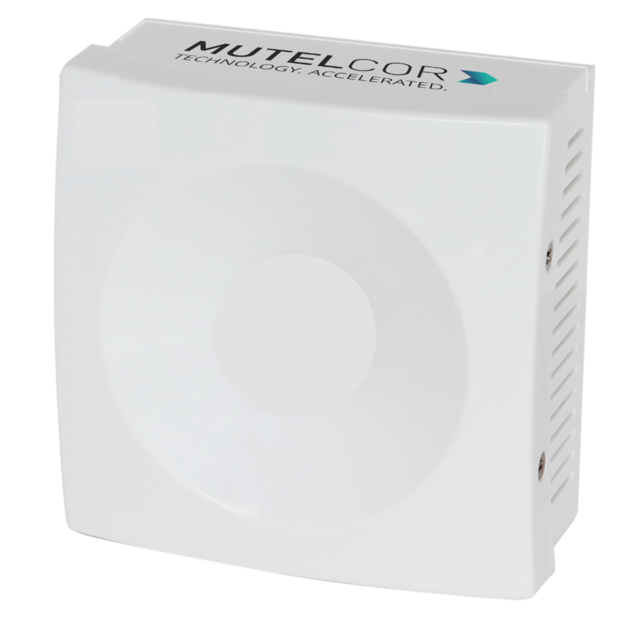

- Model No: MTC-AQ01 / MTC-AQ02 / MTC-AQ03
- Enclosure Size: 95 x 95 x 40 mm
- Net Weight: 175g
- Ingress Protection: IP30 / IP67 / IP54
- Operating Temperature: -18°C to + 55°C
- Voltage: 3V (2 x AA-Alkaline Battery)
- Battery Life: 5 Years
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm
- Sensor Reading Ranges:
- Temperature: -40 to +125
- Humidity: 0-100% RH
- Sensor Accuracy:
- Temperature: ±0.2°C
- Humidity: ±1.8% RH
Available in
- IP30 (MTC-AQ01, not protected against liquids)
- IP67 (MTC-AQ02, waterproof)
- IP54 (MTC-AQ03, protected against spray water)
Downloads
How it Works?
Dashboard, Alerts & Reports
Dashboard comprises of the following segments:
- Customizable Layout: Dashboard can be customized on customer request
- Real-time Update: Values are updated immediately on dashboard
- Time-intervals: Freedom to view measurement history on custom and predefined time intervals
Auto Generated Reports: Reports can be generated automatically and sent to the end user via email.
Application Areas
- Industrial Sector
- Police, Ambulance and Fire alarm system
- Residential Security and Safety
- Emergency Solution in Hospitals
- Wireless Nurse Call System in Hospitals
- Museums
- Home Automation
- Ragging and Brawl safety solution
- Theft, Shoplifting and Violence
- SPA, Sauna, GYM, Swimming and Front-Office
- University Campus
- Wine Cellar
FAQ
Temperature Range: -40 to +125
Humidity: 0-100% RH
Humidity: 0-100% RH
The device needs a LoRa Gateway and LoRaWAN network. The number of required
gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
A device can run for more than 5 years without the batteries being replaced.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the
Wireless Planning Commission, Govt of India.
