LoRa Manhole Sensor
When the switch detects that the manhole is opened or closed, it performs the following functions:
- Alarm message is sent in less than 1 second indicating the current status (Open or Closed)
- Locations are flashed on the Application dashboard
- Text notifications are sent via Telegram
Key Features
- No Wires, No Charging, No SIM
- Over 5 Years Battery Life (2 x AA-Alkaline Battery)
- Tamper, Dust and Waterproof (IP67)
- Hourly Heartbeat with Battery Status
- Fully-Encrypted Data Transmission
- Live-Dashboard with Reporting
- Allows full Manhole Management
- Plug & Play with easy integration using Javascript decoder
Downloads
Specifications
- Model No: MTC-MH01
- Enclosure Size: 104 x 104 x 70 mm
- Limit switch Dimensions: 192 x 104 x 70 mm
- Net Weight: 659 g
- Ingress Protection: IP67
- Operating Temperature: -18°C to + 55°C
- Operating Humidity: 10% to 95%
- Voltage: 3V (2 x AA-Alkaline Battery)
- Battery Life: 5 Years
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm

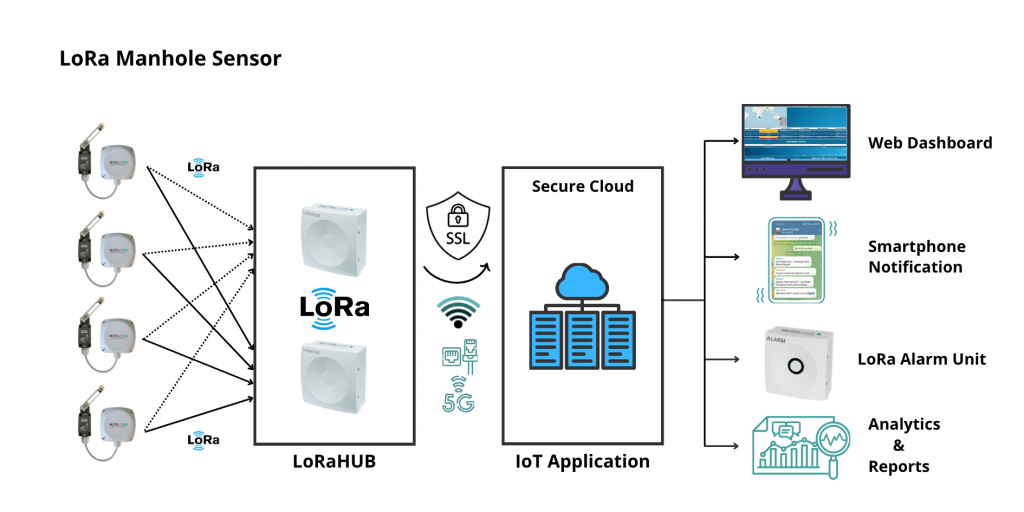

How it Works?
Dashboard, Alerts & Reports
Dashboard comprises of the following segments:
- Map: Dynamic Map Locations
- Inbuilt Sound Alarm in the Dashboard
- Alarm Disarm function to mute or disarm active alarms
- Low-Battery and Button disconnected indication
- User Authentication
Detailed Real-time Reporting & Statistics: Generation of dynamic usage reports in real-time
Application Areas
- Public Areas
- Airports
- Villas/Apartments
- Military Bases
- Museums
- Manufacturing Units
- Hotels
- Hospitals
- Diplomatic or Political buildings
FAQ
The device needs a LoRa Gateway and LoRaWAN network. The number of required gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
A device can run for more than 5 years without the batteries being replaced.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the
Wireless Planning Commission, Govt of India.
