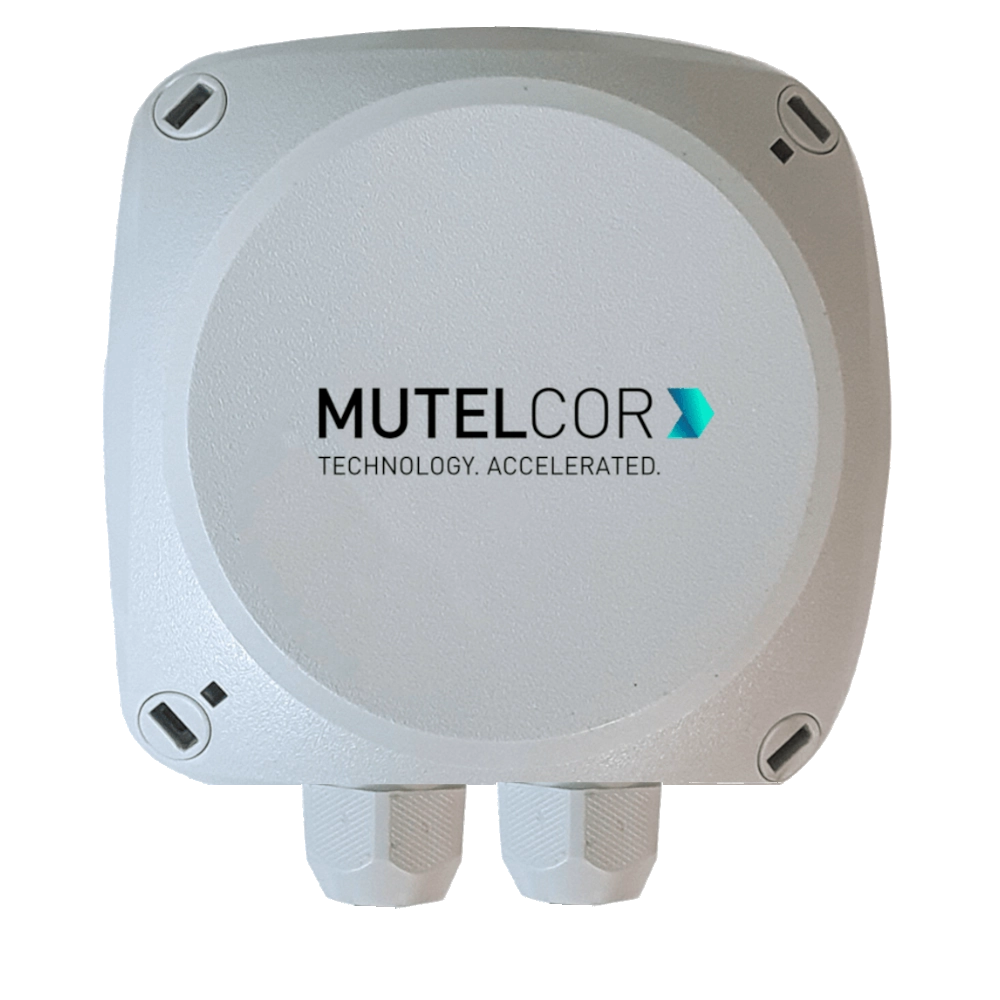

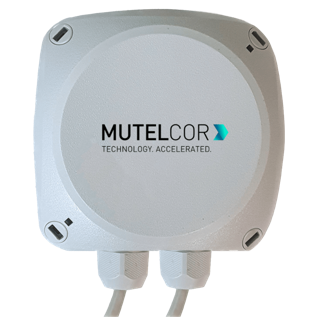

LoRa Multi-Function Device
Can connect up to 3 different external switches
- Alarm message is sent in less than 1 second indicating the current status of each connected switch
- Locations are flashed on the Application dashboard
- A buzzer sound can be configured locally on the device
- Text notifications are sent via Telegram
Key Features
- No Wires, No Charging, No SIM
- Over 5 Years Battery Life (2 x AA-Alkaline Battery)
- Tamper, Dust and Water-proof (IP67)
- Can connect up to 3 external switches
- ONE-Hour-Heartbeat with Battery Status
- Fully-Encrypted Data Transmission
- Live-Dashboard with Reporting
- Plug & Play with easy integration using Javascript decoder
Downloads
Specifications
- Model No: MTC-MF01
- Enclosure Size: 104 x 104 x 70 mm
- Net Weight: 350g
- Ingress Protection: IP68
- Operating Humidity: 10% to 95%
- Voltage: 3V (2 x AA-Alkaline Battery)
- Battery Life: 5 Years
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm
How it Works?

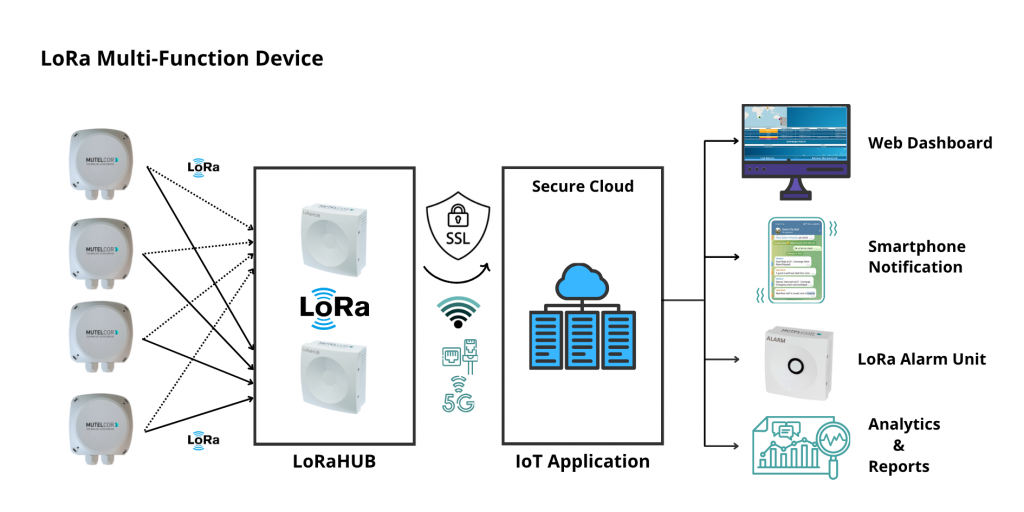

The Mutelcor LoRa Multi-Function Device is a universal LoRa Node that can be connected to up to 3 different external switches. This is useful for cost reduction purposes by combining multiple sensors that would usually need separate devices, e.g. monitoring the status of a manhole and alerting on certain water levels at the same time. As soon as the device detects that the status of a switch has changed, it sends out a LoRa message to indicate the status change. The device also sends heartbeats at a regular interval, containing the current status of each connected switch. The device can be used e.g. with
- Magnetic Sensors
- Float Sensors
- Lever Switch Sensors
- Motion Sensor and many more…
Dashboard, Alerts & Reports
Dashboard comprises of the following segments:
- Map: Dynamic Map Locations
- In-built Sound Alarm in the Dashboard
- Alarm Disarm function to mute or disarm active alarms
- Low-Battery and Button disconnected indication
- User Authentication
Detailed Real-time Reporting & Statistics: Generation of dynamic usage reports in real-time
Application Areas
- Industrial Sectors
- Residential Security and Safety
- Museums
- Home Automations
- Ragging and Brawl safety solutions
- University Campuses and Schools
- Manufacturing Units
- Airports
- Smart Cities
- Wine Cellar
FAQ
The device needs a LoRa Gateway and LoRaWAN network. The number of required gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
A device can run for more than 5 years without the batteries being replaced.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the
Wireless Planning Commission, Govt of India.
