LoRa PM2.5 Sensor
The purpose of installing LoRa based Particulate Matter Sensor on the premise is to:
- Monitor Air Quality Index
- Measure Particulate Matter Values PM1.0, PM2.5 and PM10
- Communicate Alerts when thresholds are exceeded
- Trend Indication and Data Analysis
Key Features
- Laser-scattering sensor with real-time measurement
- Configurable measurement sending interval
- Minimum recognizable particle size 0.3 µm
- Fully-Encrypted Data Transmission
- Plug & Play with easy integration using Javascript decoder
- Eco-friendly including power adapter
Specifications

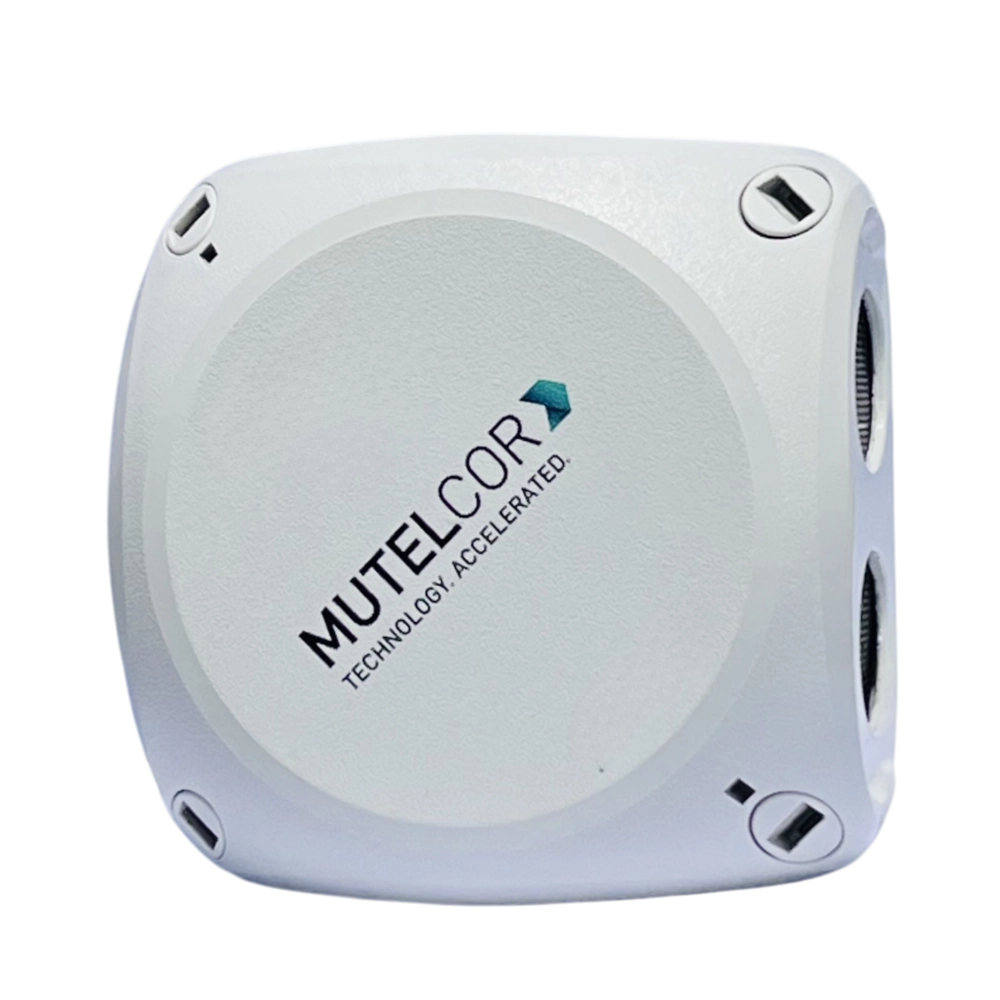

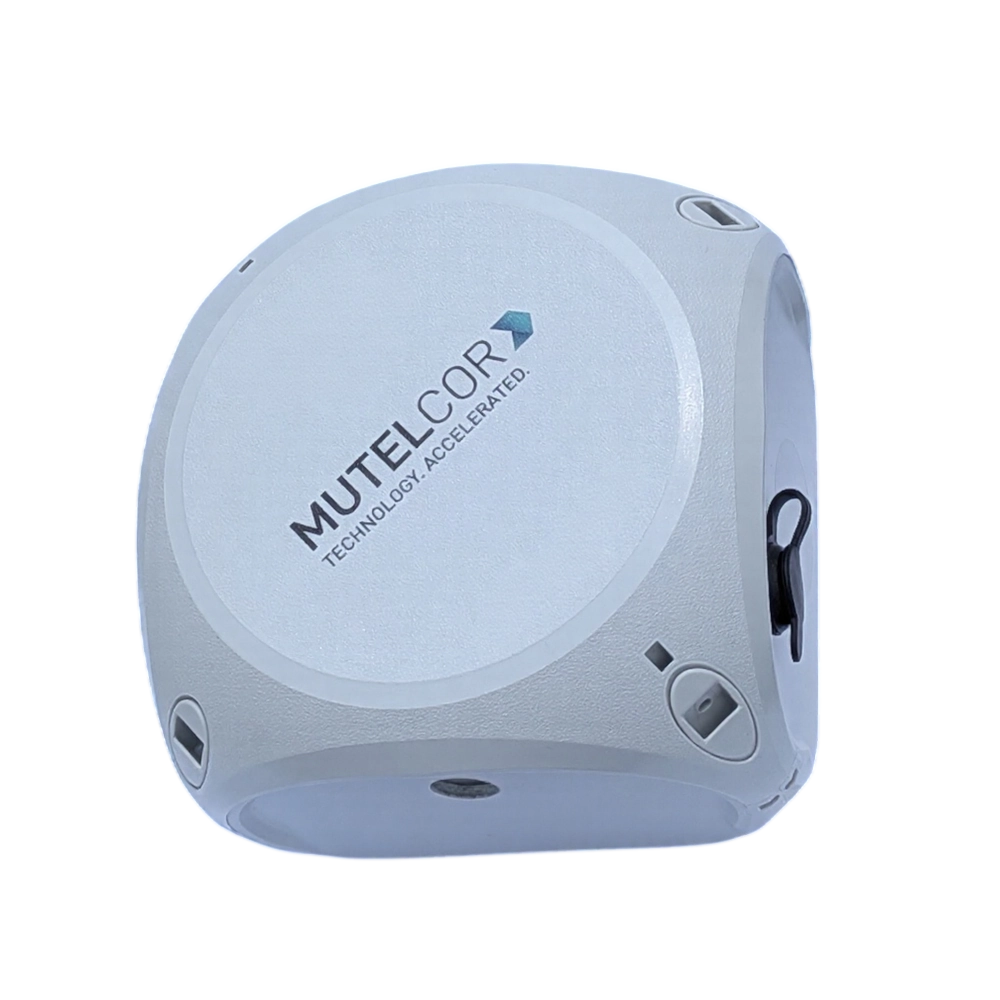

- Model No: MTC-PM01
- Enclosure Size: 104 x 104 x 70 mm
- Net Weight: 350 g
- Ingress Protection: IP30
- Operating Temperature: -10 °C to + 60 °C
- Voltage: 100 - 240V AC / 3.3V DC, 1A
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm
- PM Laser-Sensor Range:
- Range: 0.3 – 10 µm
- PMC Range: 0 – 500 µg/m³
- Max Range: >= 1000 µg/m³
- Sensor Consistency:
- Resolution: 1 µg/m³
- Accuracy:
± 10% @ 100 – 500 µg/m³
± 10µg @ 0 – 100 µg/m³
Downloads

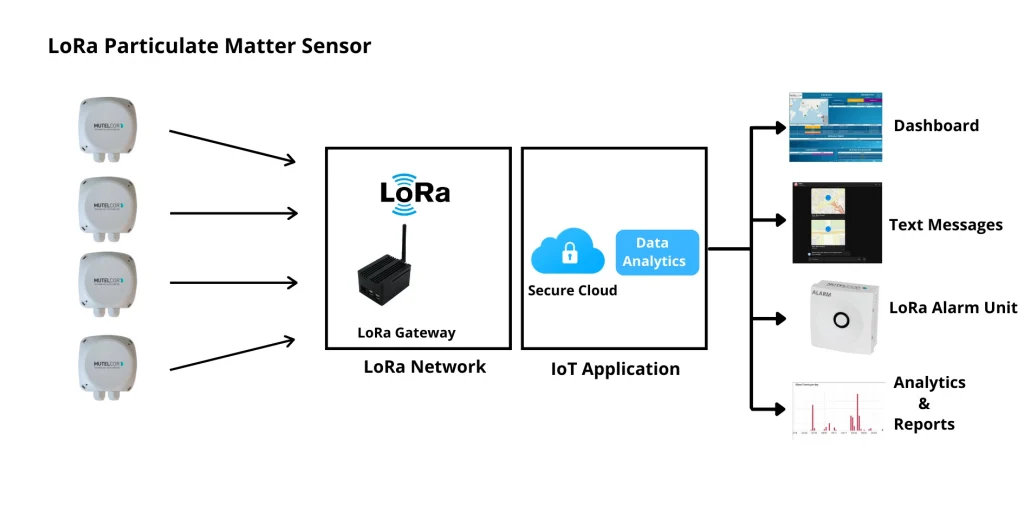

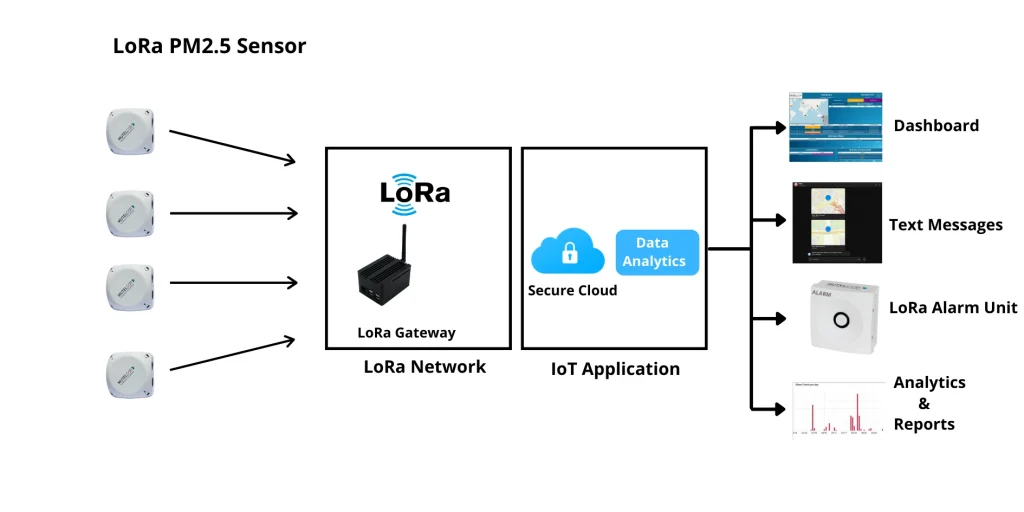

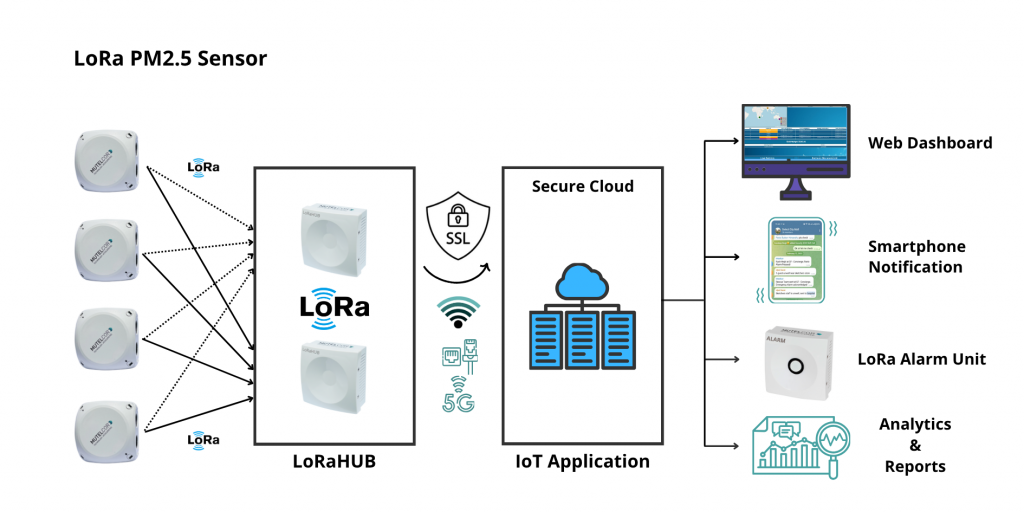

How it Works?

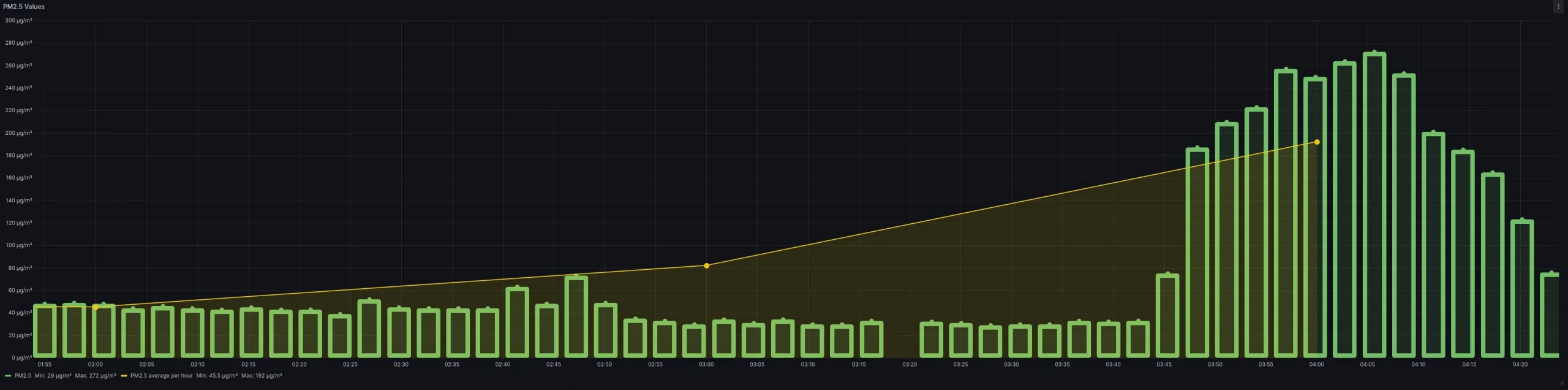

Dashboard, Alerts & Reports
Dashboard comprises of the following segments:
- Customizable Layout: Dashboard can be customized on customer request
- Real-time Update: Values are updated immediately on dashboard
- Time-intervals: Freedom to view measurement history on custom and predefined time intervals
Auto Generated Reports: Reports can be generated automatically and sent to the end user via email.
Application Areas
- Buildings and Construction Site
- Manufacturing Plants
- Petrol / Gas Pumps
- Hotels
- Smart City
- Resorts
FAQ
The device needs a LoRa Gateway and LoRaWAN network. The number of required
gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
The device runs on power only. A Power Adapter is provided together with the sensor.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the
Wireless Planning Commission, Govt of India.
