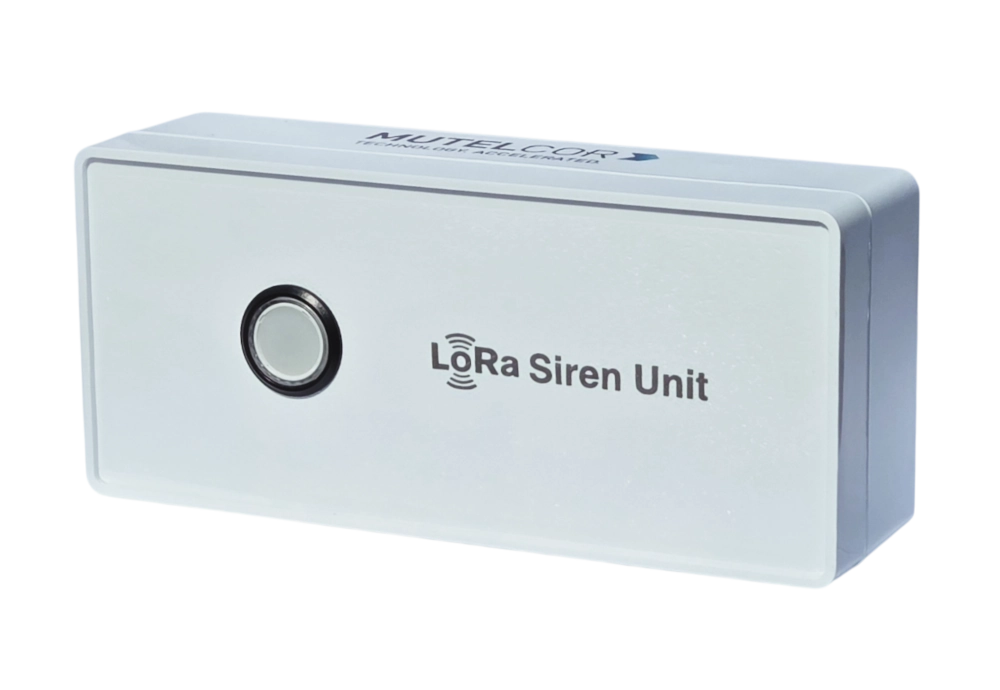

LoRa Siren Unit
The LoRa Siren Unit features a loud 110 dB Siren as well as an LED Button to indicate Alarms. When the LoRa Siren Unit is triggered by a LoRa downlink message, it performs the following functions:
- Configurable Alarm is started (LED and Siren behaviour can be configured)
- The LED Button can be pressed to stop the Alarm locally on the device
- When the Alarm is stopped, a LoRa uplink message is sent
Key Features
- Configurable with OTA commands over LoRa
- Multi-color LEDs (RED/YELLOW/GREEN) to indicate Alerts
- 110 dB Siren on Alerts received
- LED Button to manually stop the Alarm
- Regular Heartbeat via LoRa to indicate Connectivity Status
- LoRa Class C Device with Secure Data Transmission for Real-Time alarms
- Plug & Play with easy integration using Javascript decoder
Specifications
- Model No: MTC-SU01 / MTC-SU02
- Enclosure Size: 180 x 80 x 48 mm
- Net Weight: 350g
- Ingress Protection: IP30
- Operating Temperature: -18°C to + 55°C
- Voltage: 100 - 240V AC / 3.3V DC, 1A
- LoRa Frequency:
- EU863-870 (CE-Certified)
- IN865-867 (ETA-Certified)
- US902-928
- AU915-928
- AS923-1, -2, -3, -4
- KR920-923
- OTAA and ADR: Compliant
- SF Supported: 7 – 12
- RF Output: 14 dBm
Available in
- Red Lens (MTC-SU01, RED and YELLOW LED)
- Transparent Lens (MTC-SU02, RED, YELLOW and GREEN LED)
Downloads
Usage and Integration
The LoRa Siren Unit can be used either independently or with our other products like LoRa Panic Button with Confirmation, Smart CO2 LoRa Sensor or LoRa Air Quality Sensor to siren Alarms and Alerts.
- Up to 4 different Alarm-Types can be configured on the device
- Changeable LED Color based on Alarm-Type
- Configurable Behavior (LED: ON, OFF, Flash / Siren: ON, OFF, Beep)
Application Areas
- Industrial Sector
- Police, Ambulance and Fire alarm system
- Residential Security and Safety
- Emergency Solution in Hospitals
- Wireless Nurse Call System in Hospitals
- Museums
- Home Automation
- Ragging and Brawl safety solution
- Theft, Shoplifting and Violence
- SPA, Sauna, GYM, Swimming and Front-Office
- University Campus
FAQ
The device needs a LoRa Gateway and LoRaWAN network. The number of required gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
The device runs on power, the power adapter is included
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the Wireless Planning Commission, Govt of India.
