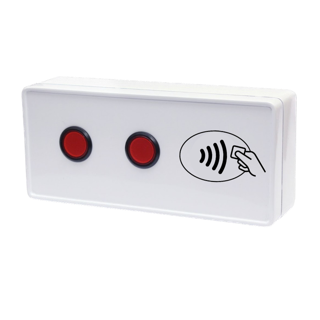

NFC RFID - LoRa Button

  • Send alerts with identification based on NFC or RFID Tag
  • Raise events in real time
  • Seek Assistance
  • Identification of the person pressing the button
  • Communicate Status
Request a Demo

Key Features

  • Read NFC RFID Tags on Button press
  • Over 5 Years Battery Life (2 x AA-Alkaline Battery)
  • Dust- and Waterproof (IP67) version available on request
  • Regular Heartbeat with Battery Status
  • Secure Data Transmission
  • Buzzer for local feedback on Button press
  • Plug & Play with easy integration using Javascript decoder

Specifications

  • Model No: MTC-NFC01 / 02
  • Enclosure Size: 180 x 80 x 48 mm
  • Net Weight: 350g
  • Ingress Protection: IP40
  • Operating Temperature: -18°C to + 55°C
  • Voltage: 3V (2 x AA-Alkaline Battery)
  • Battery Life: 5 Years
  • LoRa Frequency:
    • EU863-870 (CE-Certified)
    • IN865-867 (ETA-Certified)
    • US902-928
    • AU915-928
    • AS923-1, -2, -3, -4
    • KR920-923
  • OTAA and ADR: Compliant
  • SF Supported: 7 – 12
  • RF Output: 14 dBm

Available in

  • Single button version (MTC-NFC01)
  • Dual button version (MTC-NFC02)

Downloads

DATASHEET
QUICK GUIDE
APPLICATION AREAS

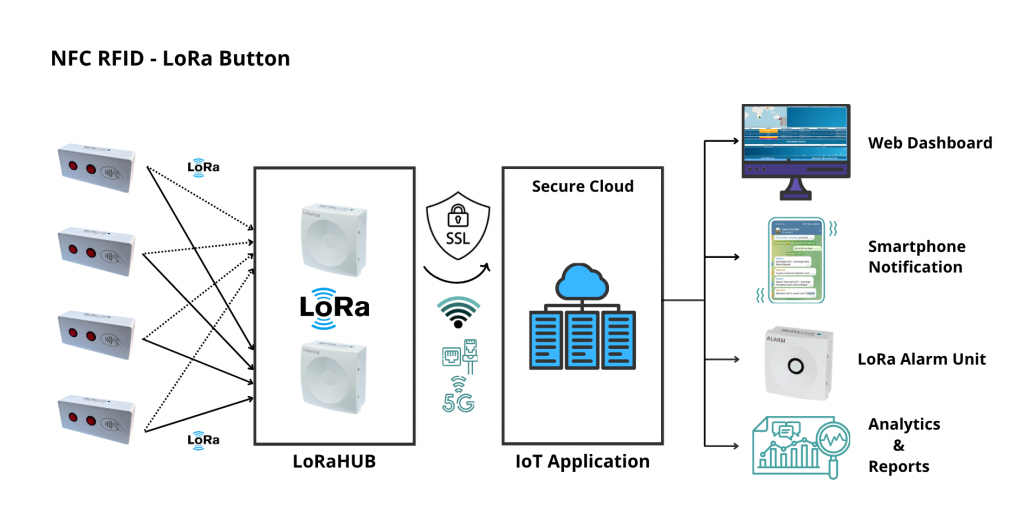

How it Works?

Dashboard, Alerts & Reports

Dashboard comprises of the following segments:
  • Map: Dynamic Map Locations
  • In-built Sound Alarm in the Dashboard
  • Alarm Disarm function to mute or disarm active alarms
  • Low-Battery and Button disconnected indication
  • Detailed Real-time Reporting & Statistics: Generation of dynamic usage reports in real-time
Panic Button

Application Areas

  • Smart Cities
  • Hospitals
  • Washrooms
  • Villas / Apartments
  • Museums / Transport
  • Educational Institutions
  • Hotels / Restaurants / Airports
  • Banks / Shopping Malls / Corporates
  • Wine Cellar

FAQ

The device needs a LoRa Gateway and LoRaWAN network. The number of required gateways depends on the Location and covered area over which these devices are installed.
Over 1000 devices in parallel can be easily connected with a single gateway.
A device can run for more than 5 years without the batteries being replaced.
The product is CE, RoHS, REACH, WEEE certified in Germany and ETA approved by the Wireless Planning Commission, Govt of India.

For more details about our products and expert advice to chose the right product for your use case, please contact us at: business@mutelcor.com

If you have any questions about our NFC RFID – LoRa Button, please don’t hesitate to contact us. We’re happy to answer any questions you might have about our NFC RFID – LoRa Button and have a short online meeting with you. We can discuss how our products can help you realising your project and to show you a short online demo of our NFC RFID – LoRa Button. Just click on the button below or send us an email.
